MITSUBISHI 2100KVA

MITSUBISHI
S16R-PTA2
2100KVA
Product description: Powered by MITSUBISHI | 400V, 1500RPM, 50Hz
INQUIRY

Standby Power（50Hz） 1520KW /1900KVA Prime Power（50Hz） 1392KW /1740KVA

General Features: Engine Mitsubishi S16R-PTA2 , Radiator 40OC max, fans are driven by belt, with safety guard 24V charge alternator Alternator: single bearing alternator IP23, insulation class H/H Absorber Dry type air filter, fuel filter, oil filter, pre-filter, coolant filter Main line circuit breaker Standard control panel Two12V batteries, rack and cable Ripple flex exhaust pipe, exhaust siphon, flange, muffler User manual

Voltage	HZ	Phase	COS￠	Standby Amps	Standby Ratings （KW/KVA）	Prime Ratings （KW/KVA）
254/440	50	3	0.8	2755	1680/2100	1520/1900
240/415	50	3	0.8	2921	1680/2100	1520/1900
230/400	50	3	0.8	3031	1680/2100	1520/1900
220/380	50	3	0.8	3190	1680/2100	1520/1900

Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load

application, in accordance with GB/T2820（eqv ISO8528）; A 10% overload capability is available for a period of
1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the
duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is
available at this rating.

Sales Promises FKSPower provides a full line of brand new and high quality products. Each and every unit is strictly factory tested. Warranty is according to our standard conditions: a, 15 months, counted on the day FKSPOWER sold to the first buyer; b, One year after installation; c, 1000 running hours (accumulated); subject to the earlier one. Service and parts are available from FKSPower or distributors in your location.

Manufacturer / Model: Mitsubishi S16R-PTA2-C
Air Intake System: Turbo, Water/Air Cooling
Fuel System: Mitsubishi PS6
Cylinder Arrangement: 16 in "V"
Displacement: 65.37L
Bore and Stroke: 170×180（mm）
Compression Ratio: 13.5
Rated RPM: 1500rpm
Max. Standby Power at Rated RPM: 1760KW/2360HP
Governor Type: Electronic
Exhaust System
Exhaust Gas Flow: 415m3/min
Exhaust Temperature: 520℃
Max Back Pressure: 5.8kPa
Air Intake System
Max Intake Restriction: 6.1kPa
Burning Capacity: 157m3/min
Air Flow: 2100m3/min
Fuel System
100%(Prime Power) Load: 216g/Kw.h
75%(Prime Power) Load: N/A
50%(Prime Power) Load: N/A
100%(Prime Power) Load: 416L/h
Oil System
Total Oil Capacity: 230
Oil Consumption: ≤4g/kwh
Engine Oil Tank Capacity: 140~200L
Oil Pressure at Rated RPM: 490-640kPa
Cooling System
Total Coolant Capacity: 360L
Thermostat: 71-85℃
Max Water Temperature: 98℃

► The advanced technology of Mitsubishi engine FKSPOWER - MITSUBISHI series diesel generating sets powered by Mitsubishi turbo charged engine, designed for heavy duty usage. Engine equipped with battery charging system and the equipment selection and comprehensive technical support

►Excellent price & performance FKSPOWER - MITSUBISHI series diesel generator set has advantage of MITSUBISHIall volume, light weight, low fuel consumption, high output power, etc,

►The purpose is to maximize the customer's operation cost saving. and FKSPOWER - MITSUBISHI series generator set as an economic/cost saving solution to users all over the world.

►Wide user base & after-sales service Mitsubishi quality widely recognized by users in China and overseas,

►FKSPOWER - MITSUBISHI series generator set has been widely used in large power plant, mining, Telecom and telecommunications, factories, transportation, bank, hotels and other industries, for various customers with different continuous and standby power supply. FKSPOWER - MITSUBISHI series can enjoy Mitsubishi engine service, maintenance and spare parts supply around the globe.

Powered by MITSUBISHI \| 400V, 1500RPM, 50Hz

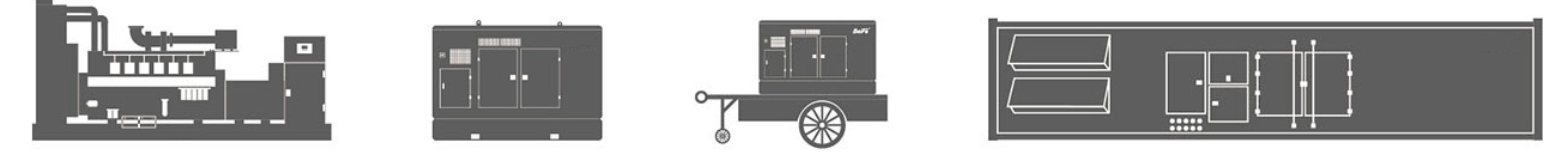

FKSPOWER	Standby	Prime	MITSUBISHI Engine	Dimension mm	Dimension mm
Model	kVA	kVA	Model	Open Type	Soundproof Type
HJ-SM825	825	750	S6R2-PTAA-C	408017152000	ISO 20'ft GP
HJ-SM1375	1375	1250	S12R-PTA-C	452022002510	ISO 20'ft GP
HJ-SM1500	1500	1375	S12R-PTA2-C	452022002510	ISO 20'ft GP
HJ-SM1650	1650	1500	S12R-PTAA2-C	492022003000	ISO 20'ft GP
HJ-SM1900	1900	1740	S16R-PTA-C	547022002550	ISO 40'ft HQ
HJ-SM2100	2100	1900	S16R-PTA2-C	547022002550	ISO 40'ft HQ
HJ-SM2250	2250	2050	S16R-PTAA2-C	598525552775	ISO 40'ft HQ
HJ-SM2500	2500	2250	S16R2-PTAW-C	598525552775	ISO 40'ft HQ
