POWERED BY WEICHAI BAUDOUIN

WEICHAI BAUDOUIN 800KVA

WEICHAI
BAUDOUIN
800KVA
12M26D748E200
Product description: Powered by BAUDOUIN | 400V, 1500RPM, 50Hz
INQUIRY

Standby Power（50Hz） 704kW/880kVA Prime Power（50Hz） 640kW/800kVA

General Features: Engine ( Weichai Baudouin 12M26D748E200） Radiator 40OC max, fans are driven by belt, with safety guard 24V charge alternator Alternator: single bearing alternator IP23, insulation class H/H Dry type air filter, fuel filter, oil filter Main line circuit breaker Standard control panel Lead acid batteries, rack and cable Ripple flex exhaust pipe, exhaust siphon, flange, muffler User manual

Voltage	HZ	Phase	COS￠	Standby Amps	Standby Ratings （KW/KVA）	Prime Ratings （KW/KVA）
254/440	50	3	0.8	1155	704/880	640/800
240/415	50	3	0.8	1224	704/880	640/800
230/400	50	3	0.8	1270	704/880	640/800
220/380	50	3	0.8	1337	704/880	640/800

Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820（eqv ISO8528）; A 10% overload capability is available for a period of

1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the
duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is
available at this rating.

Sales Promises FKSPower provides a full line of brand new and high quality products. Each and every unit is strictly factory tested. Warranty is according to our standard conditions: a, 15 months, counted on the day FKSPOWER sold to the first buyer; b, One year after installation; c, 1000 running hours (accumulated); subject to the earlier one. Service and parts are available from FKSPower or distributors in your location.

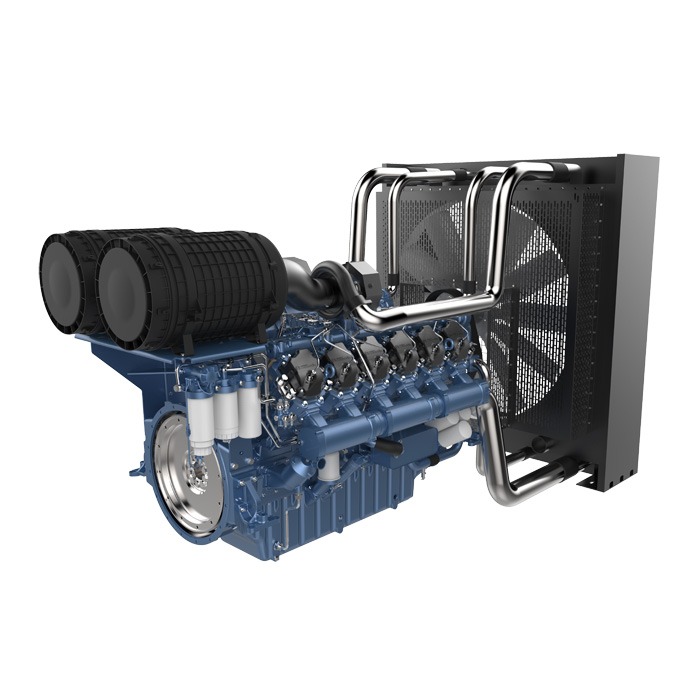

Manufacturer / Model: Weichai Baudouin 12M26D792E200
Air Intake System: Turbo, intercooling
Fuel System: Mechanical pump
Cylinder Arrangement: 12 in “V”
Displacement: 31.8L
Bore and Stroke: 150×150 mm
Compression Ratio: 15
Rated RPM: 1500rpm
Max. Standby Power at Rated RPM: 792kW
Governor Type: Electronic
Exhaust System
Exhaust Gas Flow: 4215kg/h
Exhaust Temperature: 580℃
Max Back Pressure: 7.5kPa
Air Intake System
Max Intake Restriction: 5kPa
Consumption: 4070kg/h
Fuel System
100%( Prime Power) Load: 201.3g/kWh
75%(Prime Power) Load: 205.6g/kWh
50%(Prime Power) Load:: 210.5g/kWh
100%( Prime Power) Load: 167 L/h
Oil System
Total Oil Capacity: 113L
Oil Consumption: ≤0.5%
Engine Oil Tank Capacity: 113L
Oil Pressure at Rated RPM: 400~600kPa
Cooling System
Total Coolant Capacity: 210L
Max Water Temperature: 95℃

☆More informations send Email:sales@fkspower.com☆

► Advantages of Weichai Baudouin
►Power efficient for every application, Overhaul time: 32000h
►Adapt to harsh environments, high attitude, extreme cold and hot, Lower power loss at high altitudes.
►French brand and technology Weichai fully owned, economical and reliable
►Supplier of diesel engine for French Military, For example: Charles de Gaulle aircraft carrier,Excellent price & performance FKSPOWER - Weichai Baudouin series diesel generator set

►The purpose is to maximize the customer's operation cost saving. and FKSPOWER - Weichai Baudouin series generator set as an economic/cost saving solution to users all over the world.

►Wide user base & after-sales service Weichai Baudouin quality widely recognized by users in China and overseas,

Powered by BAUDOUIN \| 400V, 1500RPM, 50Hz
FKSPOWER	Standby	Prime	Engine	Dimension mm	Dimension mm
Model	kVA	kVA	Model	Open Type	Soundproof Type
HJ-BD700	700	635	6M33D633E200	380016002050	580018002550
HJ-BD825	825	750	12M26D748E200	450021002080	580018002550
HJ-BD880	880	800	12M26D792E200	450021002080	580018002550
HJ-BD1000	1000	910	12M26D902E200	450021002080	ISO 20'ft GP
HJ-BD1100	1125	1025	12M26D968E200	450021002080	ISO 20'ft GP
HJ-BD1250	1250	1135	12M33D1108E200	460021002300	ISO 20'ft GP
HJ-BD1375	1375	1250	12M33D1210E200	460021002300	ISO 20'ft GP
HJ-BD1500	1500	NA	12M33D1320E200	460021002300	ISO 20'ft GP
HJ-BD2050	2050	1875	12M55D1870E310	540026502650	ISO 40'ft HQ
HJ-BD2250	2250	2000	12M55D2020E310	479018452270	ISO 40'ft HQ
HJ-BD2500	2500	2250	12M55D2210E310	545018452560	ISO 40'ft HQ
HJ-BD2750	2750	2500	12M55D2450E310	565019002650	ISO 40'ft HQ
